Silicone Perimeter Seals for Electrical Connectors

Silicone Perimeter Seals for Electrical Connectors

Our precision-molded silicone perimeter seals provide critical environmental protection for electrical connector housings by creating a watertight barrier at the connector mating interface. Engineered for automotive, industrial, marine, and aerospace applications, these seals prevent moisture, dust, and contaminants from entering connector assemblies while maintaining reliable electrical performance in harsh environments.

Key Features & Benefits

• Watertight Mating Interface Seal: Creates compression seal between connector halves to achieve IP67/IP68/IP69K ingress protection ratings
• Extreme Temperature Range: Silicone performs from -65°F to 400°F (-54°C to 204°C)—ideal for underhood, outdoor, and extreme-environment applications
• Chemical Resistance: Excellent resistance to oils, fuels, coolants, brake fluids, and automotive chemicals
• Compression Set Resistance: Maintains sealing force over years of service despite thermal cycling and vibration
• UV & Ozone Resistant: Superior outdoor durability without cracking, hardening, or degradation
• Flexible & Conformable: Accommodates connector tolerance variations and mating misalignment
• Easy Assembly: Designed for simple installation into connector housing grooves

Common Applications

• Automotive: Engine control modules, sensor connectors, lighting assemblies, charging ports, battery management systems
• Electric Vehicles: High-voltage battery connectors, charging inlets, motor controllers, inverter connections
• Marine: Navigation equipment, bilge systems, deck lighting, instrument panels, underwater connectors
• Industrial: Control panels, motor junction boxes, outdoor equipment, process instrumentation
• Aerospace: Avionics connectors, environmental control systems, flight control wiring
• Heavy Equipment: Construction machinery, agricultural equipment, mining vehicles, off-highway systems
• Outdoor Electronics: Solar inverters, wind turbines, outdoor lighting, security systems, weather stations

How Perimeter Seals Protect Electrical Connectors

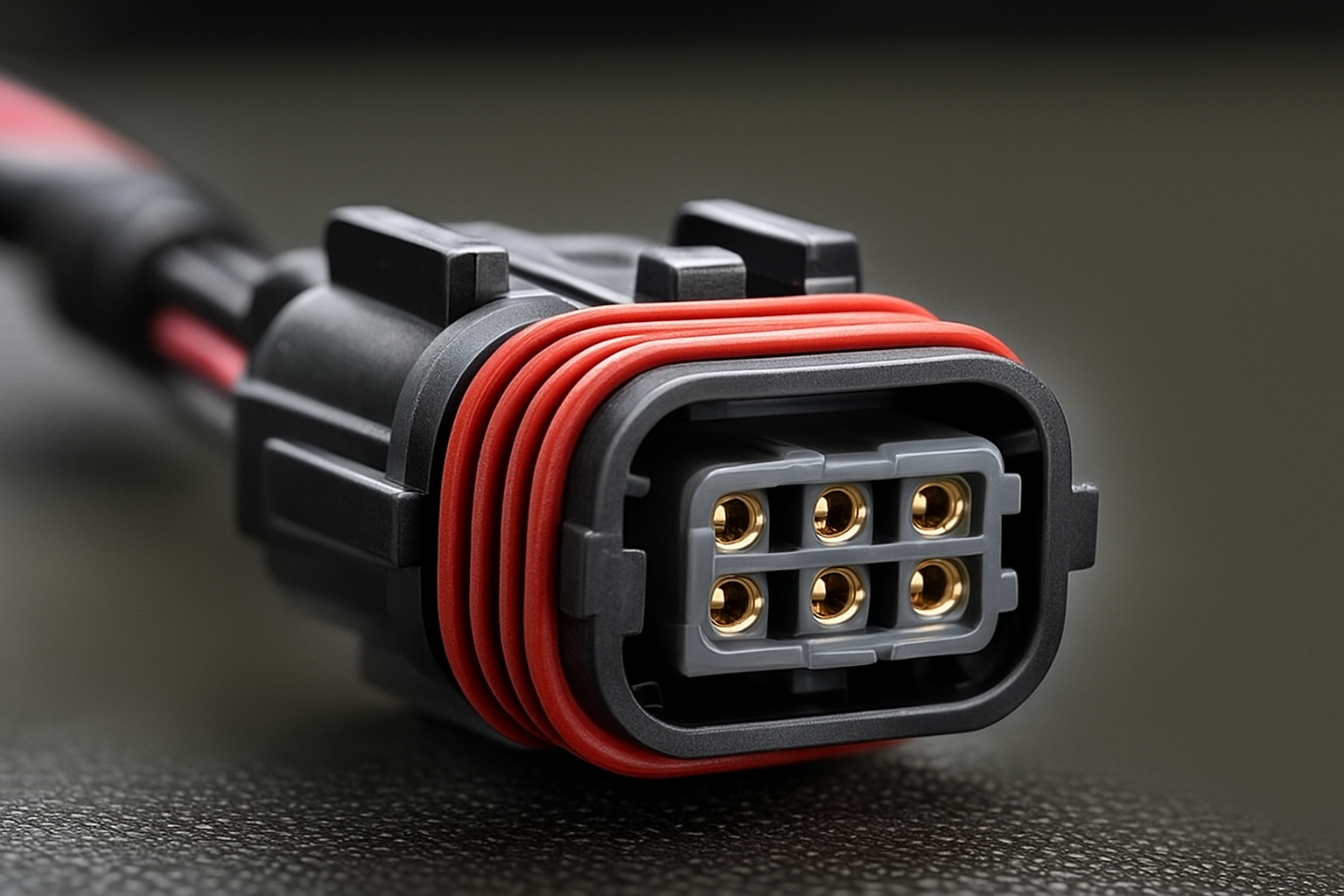

Perimeter seals are installed in a groove around the outer edge of the connector housing face. When the connector halves are mated and locked together, the seal compresses between the two housing faces, creating a continuous barrier that prevents water, dust, and contaminants from reaching the electrical contacts inside. The seal's compression force and material resilience maintain this barrier through vibration, thermal expansion, and long-term service.

Why Silicone for Connector Perimeter Seals?

Silicone is the material of choice for connector perimeter seals due to its exceptional temperature range, compression set resistance, and environmental durability. Unlike EPDM or neoprene, silicone maintains sealing integrity from arctic cold (-65°F) to underhood heat (400°F) without hardening or losing compression force. Silicone's superior UV and ozone resistance ensures decades of outdoor service without cracking, while its chemical resistance protects against automotive fluids, oils, and cleaning agents. The material's low compression set means seals maintain constant sealing pressure despite years of thermal cycling and vibration.

Design Configurations

• O-Ring Style: Circular cross-section for standard groove designs—most common configuration
• D-Ring/P-Ring Style: Asymmetric cross-section for space-constrained applications
• Custom Profiles: Engineered cross-sections optimized for specific connector geometries
• Rectangular/Square: Flat seals for low-profile connector designs
• Multi-Lobe: Complex profiles for enhanced sealing performance or retention features

Seal Design Considerations

• Compression: Typically designed for 15–30% compression at mating interface
• Groove Dimensions: Seal sized to fill 70–85% of groove depth when uncompressed
• Material Hardness: 40–70 Shore A depending on compression requirements and connector design
• Retention Features: Molded ribs, lips, or adhesive backing to prevent seal displacement during assembly
• Color Coding: Available in multiple colors for connector identification or voltage rating indication

Performance Standards & Testing

Our silicone perimeter seals are designed and tested to meet automotive and industrial connector sealing standards including IP67/IP68/IP69K ingress protection, USCAR-2 automotive connector specifications, SAE J1742 connector sealing requirements, and customer-specific OEM validation protocols. Testing includes water immersion, high-pressure spray, thermal shock, vibration endurance, and accelerated aging.

Material Properties

• Material: High-grade silicone rubber (VMQ/FVMQ)
• Hardness: 20–70 Shore A (customizable by application)
• Temperature Range: -65°F to 400°F continuous (-54°C to 204°C)
• Tensile Strength: 1,000–1,400 psi
• Elongation: 400–700%
• Compression Set: Excellent (typically <20% at 350°F for 70 hours)
• Tear Strength: 100–200 pli (Die B)
• Dielectric Strength: 500+ V/mil

IP Rating Capabilities

• IP67: Dust-tight and protected against temporary water immersion (1 meter for 30 minutes)
• IP68: Dust-tight and protected against continuous water immersion (depth and duration per specification)
• IP69K: Dust-tight and protected against high-pressure, high-temperature spray cleaning

Custom Molding & Engineering Support

We specialize in custom silicone perimeter seal design and molding for OEM electrical connector applications. Our engineering team collaborates with your connector design to optimize seal geometry, compression characteristics, groove dimensions, and retention features. We support FEA analysis, prototype validation, environmental testing, and high-volume production with full traceability and quality documentation.

Installation Guidelines

1. Verify connector housing groove is clean and free of debris or flash
2. Install perimeter seal into housing groove—ensure seal seats fully around entire perimeter
3. Check for seal twisting, pinching, or gaps at parting lines
4. Mate connector halves and engage locking mechanism to specified torque or engagement
5. Verify seal compression is uniform around perimeter with no visible gaps
6. Perform seal integrity testing per application requirements (water spray, immersion, etc.)

Quality Assurance

Every production lot undergoes dimensional inspection, hardness testing, compression set validation, and visual inspection to ensure consistent sealing performance. We maintain full material traceability, process control documentation, and compliance with automotive IATF 16949 and aerospace AS9100 quality standards.

Why Choose Rubber Mexico for Connector Perimeter Seals?

With decades of experience in precision silicone molding for automotive and industrial connector applications, we deliver perimeter seals engineered for reliable environmental protection. Our in-house tooling design, molding, and validation testing capabilities ensure dimensional accuracy, material consistency, and performance validation. From prototype to high-volume production, we support your connector sealing requirements with technical expertise and manufacturing excellence.

Need custom perimeter seals? Contact us with your connector housing drawings, groove dimensions, IP rating requirements, and environmental conditions. Our engineering team will design, prototype, test, and validate silicone perimeter seals optimized for your connector application.
