Dimensional Inspection Challenges in Custom Molded Rubber Parts: A Quality-Driven Perspective

For OEM engineers and technical buyers, dimensional inspection is often treated as a straightforward quality step: compare a part against the drawing and confirm it is within tolerance. In practice, that approach becomes much more complex when the part is rubber. Unlike rigid materials, rubber responds to touch, temperature, humidity, elapsed time after molding, and even the way a dimension is defined on the print. That is why dimensional control in custom molded rubber parts is not just a metrology topic. It is a risk-management issue that directly affects repeatability, field performance, and supplier confidence.

OEMs typically expect consistent tolerances, stable process output, and reliable inspection records that can support PPAP submissions, audits, and production launches. Those expectations are reasonable, but achieving them in rubber demands more than measuring every part with a caliper. Effective rubber dimensional inspection has to be tied to process capability, reliable measurement methods, and clear acceptance criteria.

From a quality perspective, the goal is not simply to “check dimensions.” It is to create a system of rubber manufacturing quality control that can distinguish true process variation from measurement noise, reduce downstream risk, and support long-term product reliability.

Material Behavior and Its Impact on Rubber Dimensional Inspection

The first challenge in inspecting rubber is understanding that the material itself is inherently variable in ways that metals and plastics are not. Rubber is soft, elastic, and sensitive to its environment. That means the same part can appear to measure differently depending on how it is handled, when it is measured, and under what conditions.

One major factor is elastic recovery. If a rubber component is lightly compressed during measurement, it may deform and then recover once the contact is removed. Even small differences in measurement pressure can change the recorded result. This becomes especially important when different operators are using handheld tools or when dimensional acceptance is tight relative to the softness of the part.

Environmental sensitivity also matters. Temperature affects rubber behavior because the material expands and contracts, but more importantly, it changes stiffness. A warmer part may feel softer and deform more easily during inspection. Humidity can also influence certain compounds and the stability of stored parts. For this reason, well-managed suppliers often control inspection lab conditions and allow molded parts to stabilize before measurement.

Another important issue is the difference between free-state dimensions and functional dimensions. A rubber part sitting freely on a table may not represent its real working shape. Many seals, mounts, grommets, and isolators are designed to perform under compression, stretch, or assembly load. If the drawing does not specify whether a feature should be inspected in free state or in an installed condition, the resulting data can be misleading. A part may “fail” the lab measurement but perform correctly in the application, or the opposite may occur.

This is why internal measurement standards are so important in rubber dimensional inspection. A capable supplier does not rely only on the nominal print. It defines how the part is conditioned, how long it rests after molding, what instrument is used, how force is controlled, and whether the part is measured in a free or simulated functional state.

The real challenge is not measuring rubber. The challenge is measuring it consistently under controlled conditions. For custom molded rubber parts, dimensional reliability depends as much on method discipline as on the part itself.

Understanding Errors in Rubber Dimensional Inspection

When dimensional results vary, the immediate assumption is often that the molding process is unstable. Sometimes that is true, but in many cases the bigger issue is the measurement system. In rubber components, inspection error can easily be mistaken for manufacturing error.

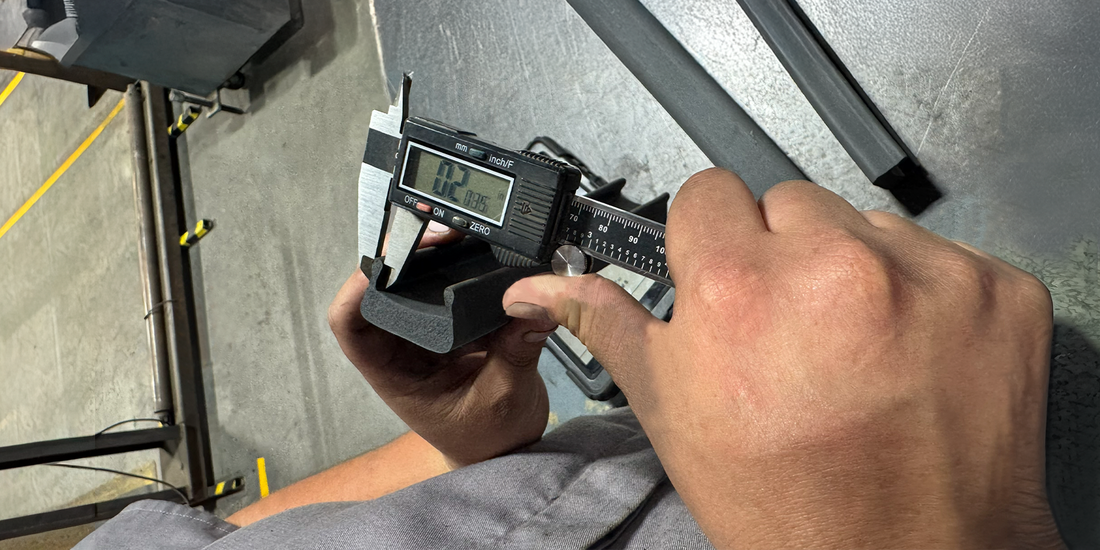

A common source of variation is inconsistent contact force. If one operator squeezes a caliper more firmly than another, the measurement may shift enough to suggest a dimensional problem where none exists. On a soft component, this is not a minor issue. It can create false rejects, inconsistent reports, and confusion between the OEM and supplier.

Operator-to-operator variation is another frequent problem. Even when the same instrument is used, results can change depending on how the part is positioned, which reference points are selected, and whether the operator interprets the drawing the same way. This is especially likely when measuring flexible lips, rounded profiles, or irregular sealing surfaces.

Timing also matters. Measuring parts before they have stabilized after molding can distort the picture of actual process performance. Rubber parts may continue to relax, shrink slightly, or reach environmental equilibrium after demolding. If inspection is performed too early, may record dimensions that do not reflect the condition of the part at shipment or use.

Drawing definition is equally critical. One of the most avoidable issues in rubber dimensional inspection is an undefined drawing condition. Is the part to be measured free state, under compression, inserted into a fixture, or after trimming and post-cure? Without that definition, both parties may be “correct” and still disagree.

This is where MSA, or Measurement System Analysis, becomes highly valuable. In a rubber environment, MSA helps determine whether the inspection system itself is trustworthy. Repeatability studies evaluate whether the same operator gets the same result repeatedly. Reproducibility looks at variation between different operators. Bias studies help identify whether an instrument or method systematically shifts results away from the true value.

It is also useful to distinguish between systematic error and random error. Systematic error comes from a consistent source, such as a fixture that locates the part incorrectly or an instrument that always compresses the part too much. Random error appears as unpredictable scatter, often caused by inconsistent handling or unstable inspection conditions.

A practical lesson for original equipment manufacturer (OEM) teams is this: dimensional variation is often a measurement system problem, not just a manufacturing one. Before concluding that the tolerance cannot be maintained, it's worth asking whether the method itself has been validated for soft and flexible parts.

Statistical Control in Rubber Manufacturing

Inspection tells you what happened. Process control helps determine why it happened and how to prevent it from happening again.

Rubber molding processes are influenced by variables such as compound behavior, preform weight, tool condition, flash control, cure time, temperature, pressure, and post-cure conditions. These factors do not affect dimensions in a perfectly linear way, but they do affect consistency. One of the most familiar examples is shrinkage variability. Molded rubber does not always shrink identically from lot to lot or compound to compound. Tool dimensions alone do not guarantee finished-part dimensions unless the process is stable and the compound behavior is well understood.

Curing also has a strong influence on dimensional stability. Under-cured parts may continue to change after molding, while over-cured parts may show different physical responses and dimensional behavior. Even when the molded shape looks acceptable, poor control of cure parameters can reduce repeatability across production runs.

This is why quality-minded manufacturers focus on critical process parameters, not only final inspection results. They monitor the factors most likely to influence key dimensions and functional features. In some cases, controlling these process inputs delivers better dimensional performance than adding more inspection points at the end of the line.

Statistical process control supports that effort. When applied correctly, SPC can reveal trends before parts move out of tolerance. For example, if a critical diameter begins drifting across several lots, the issue may be linked to tool wear, compound variation, or a curing parameter shift. Identifying that trend early is far more useful than sorting finished parts after the fact.

For custom molded rubber parts, this leads to an important quality principle: inspection detects variation, but process control reduces it. A supplier that only reacts to out-of-spec measurements is operating defensively. A supplier that understands process capability and actively controls dimension-driving variables is managing risk more effectively.

From an OEM perspective, this matters because long-term dimensional reliability is rarely built through inspection alone. It comes from a rubber manufacturing system that is stable, monitored, and capable.

Measurement Methods for Soft and Flexible Components

Not all dimensions in a rubber part should be measured the same way. That may sound obvious, but many dimensional problems start when the measurement method is chosen for convenience rather than suitability.

For simple, non-critical dimensions on relatively firm parts, traditional contact tools may be acceptable if force is controlled and the method is standardized. But as softness, flexibility, or shape complexity increase, the inspection approach often needs to change.

Fixtures are one of the most practical tools for improving consistency. A fixture can position the part in a repeatable way, reduce handling distortion, and even simulate the assembly condition. This is particularly useful for gaskets, seals, and parts that only take their true functional form once installed. Measuring these features in a fixture can provide more meaningful data than measuring them loosely in free state.

Optical measurement methods also offer advantages in rubber dimensional inspection, especially when contact would deform the part. Vision systems, profile projectors, and other non-contact technologies can reduce operator influence and avoid compression-related error.

Controlled-force instruments are another valuable option. Instead of relying on hand pressure, these tools apply a consistent measuring force, which improves repeatability. On soft materials, that consistency can make the difference between meaningful data and unreliable variation.

SPC should be applied selectively to critical dimensions rather than every possible feature. Not every dimension carries the same level of risk. A robust inspection strategy identifies which characteristics truly affect fit, sealing, load response, or assembly performance and gives those features the most disciplined measurement control.

Method validation should also happen before the SOP stage, not after production problems appear. If a dimension is difficult to measure repeatably, the issue should be identified during development, PPAP preparation, or process qualification. Waiting until mass production turns a known uncertainty into a recurring quality conflict.

The central lesson is simple: not all dimensions should be measured the same way. For soft and flexible components, a strong inspection strategy is built around part behavior, function, and risk, not just instrument availability.

How OEMs Can Improve Dimensional Reliability in Custom Molded Rubber Parts

Dimensional quality does not begin in the inspection room. It begins in design. Many recurring disputes over custom molded rubber parts can be traced back to drawings and specifications that are technically complete but not practically measurable.

One of the most important improvements OEMs can make is defining realistic functional tolerances. Rubber is not machined steel. If tolerances are copied from rigid-part standards without considering material behavior, the result may be unnecessary cost, repeated deviations, or inspection methods that do not add functional value.

Measurement condition should also be specified directly on the drawing when relevant. If a feature must be measured under compression, with a fixture, after a stabilization period, or at a defined temperature, that requirement should not remain implicit. Clear drawing language improves alignment between design, manufacturing, and quality teams.

Avoiding over-specification is equally important. Some prints contain many dimensions with tight limits even though only a few are truly critical to sealing, mounting, or assembly. That creates noise in the quality system and shifts attention away from what matters most. A better approach is to identify CTQs, or Critical to Quality characteristics, and focus process control and inspection discipline on those features.

Early collaboration with rubber manufacturing teams is another major advantage. A mold designer, quality engineer, or process engineer can often identify potential dimensional risks long before tooling is released. They may recommend geometric adjustments, tolerance reviews, parting line relocation, or changes in how a feature should be referenced for inspection. These discussions are most valuable early, when design flexibility still exists.

For technical buyers and sourcing teams, this also changes how supplier capability should be evaluated. The right question is not only “Can this supplier inspect the part?” It is also “Can this supplier help define a robust, repeatable method for dimensions that matter to performance?” A strong supplier contributes to dimensional reliability through DFM input, method development, process capability planning, and traceable validation practices.

The broader point is that dimensional quality begins in design, not at final inspection. When OEMs define functional intent clearly and work with experienced rubber teams early, they reduce avoidable variation before the first production lot is molded.

A Quality-Driven Perspective on Rubber Dimensional Inspection

A quality-driven approach to rubber dimensional inspection is fundamentally based on risk. Not every dimension carries the same consequence, and not every variation threatens product performance. The goal is to build an inspection system that protects function, supports capability, and remains credible during customer audits and production escalation.

Risk-based thinking starts by linking dimensions to actual failure modes. Which features affect sealing? Which ones influence installation force, compression set behavior, or interface fit? Which dimensions are likely to drift due to process variation, and which are likely to show false variation because of the measurement method? These questions help determine where the inspection plan should be strongest.

This is also where capability becomes more important than sorting. Sorting is reactive. It removes parts after variation has already occurred. Capability is proactive. It shows whether the process and the measurement system are jointly able to produce repeatable results over time. In a mature quality system, the objective is not simply to catch defects. It is to reduce the likelihood that defects are created or misidentified in the first place.

Reliability is the long-term outcome of that discipline. A rubber part that passes inspection once but is supported by weak measurement controls and unstable process inputs is still a risk. By contrast, a part made under stable rubber manufacturing conditions, measured with validated methods, and tied to traceable records gives OEM teams far more confidence in launch, service life, and supplier consistency.

Traceability matters here as well. Audit readiness is not only about having records. It is about being able to explain why the method is appropriate, how it was validated, what environmental controls were in place, and how the supplier knows that reported dimensions reflect true part condition. For regulated, automotive, and high-accountability OEM environments, that level of rigor builds trust.

In that sense, custom molded rubber parts require a more structured dimensional philosophy than many rigid components. Measurement is not just a pass-fail event. It is part of a broader control system that connects design intent, process behavior, inspection method, and product reliability.

Conclusion

Dimensional control in rubber components is often underestimated because the basic act of measurement seems familiar. But the reality is more nuanced. Material variability, elastic behavior, environmental sensitivity, and drawing interpretation all influence how a rubber part is measured and how reliable that result will be. Without a disciplined measurement system, it becomes difficult to separate true process variation from inspection noise.

A stronger approach combines several elements: understanding the behavior of the material, controlling the measurement method, monitoring process capability, and designing parts with realistic functional tolerances. This is where OEM engineers, quality teams, and manufacturing partners gain the most value. They move from simple dimensional checking to a broader quality strategy grounded in repeatability and risk prevention.

In custom molded rubber parts, dimensional inspection is not a final checkpoint; it is a structured risk-control system that protects performance, repeatability, and long-term reliability.

For OEM teams evaluating new or existing programs, the practical next steps are clear: review whether dimensional specifications truly reflect function, verify that the measurement system is robust for soft components, and assess whether a rubber manufacturing partner has the process capability to deliver consistent results over time.
