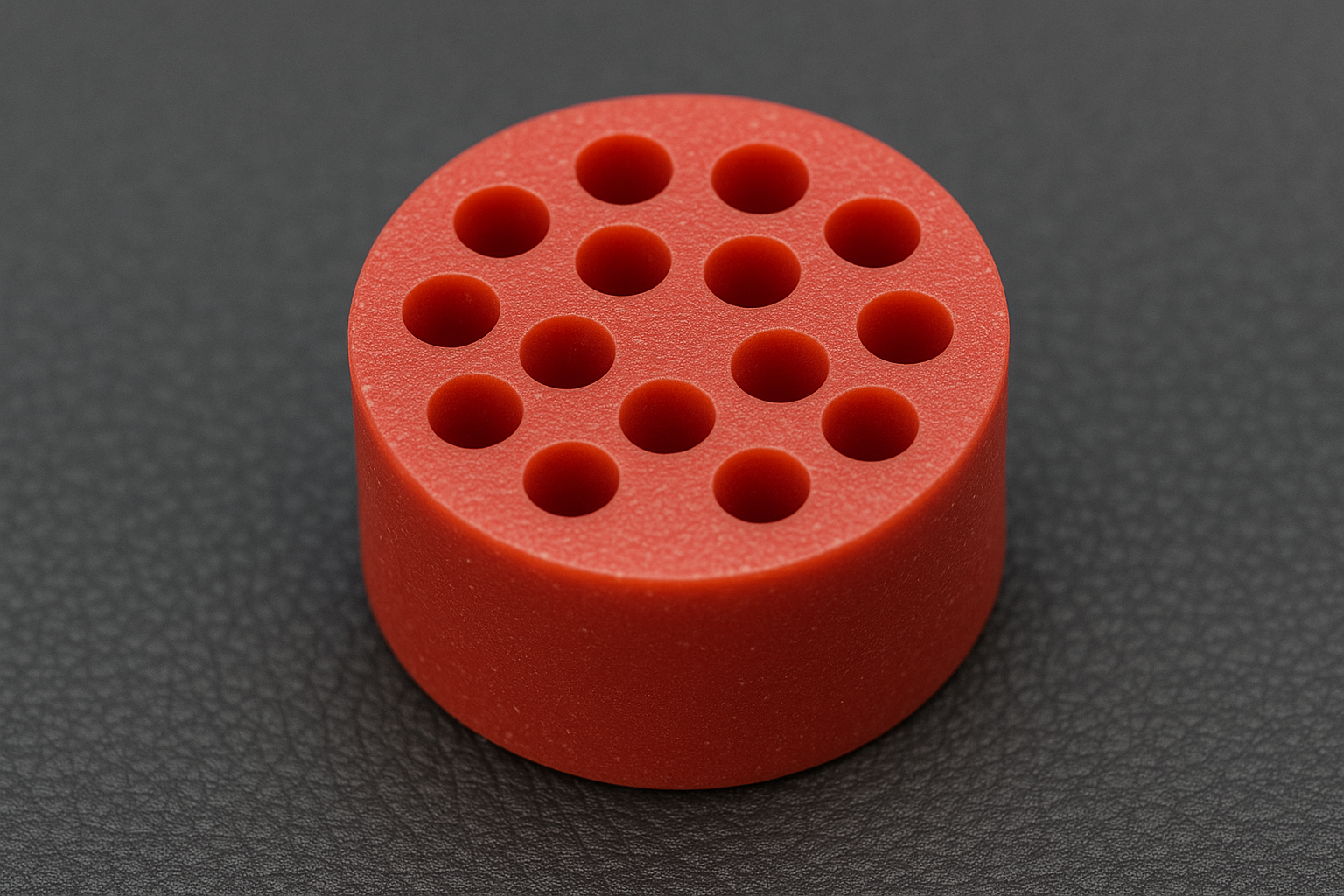

Electrical Connector Grommet

Silicone Grommet Seals for Electrical Connectors

Our precision-molded silicone grommet seals provide reliable environmental protection for electrical connectors by creating a secure, watertight seal around individual wires. Engineered for automotive, industrial, and marine applications, these grommets prevent moisture, dust, and contaminants from entering connector housings while maintaining electrical integrity in demanding environments.

Key Features & Benefits

• Watertight Wire Sealing: Creates individual seals around each wire to prevent moisture ingress and maintain IP67/IP68 ratings
• Extreme Temperature Range: Silicone performs from -65°F to 400°F (-54°C to 204°C)—ideal for underhood and extreme-environment applications
• Chemical Resistance: Excellent resistance to oils, fuels, coolants, and automotive fluids
• Flexible & Durable: Maintains sealing integrity through vibration, thermal cycling, and wire movement
• UV & Ozone Resistant: Superior outdoor durability without degradation or cracking
• Electrical Insulation: High dielectric strength prevents short circuits and electrical leakage
• Easy Installation: Flexible material allows simple wire insertion and connector assembly

Common Applications

• Automotive: Engine harness connectors, sensor connectors, underhood wiring, lighting assemblies
• Marine: Boat electrical systems, navigation equipment, bilge pump connections
• Industrial: Control panels, motor connections, outdoor equipment, instrumentation
• Heavy Equipment: Construction machinery, agricultural equipment, off-highway vehicles
• Aerospace: Aircraft wiring harnesses, avionics connectors, environmental sealing
• Outdoor Electronics: Solar panels, outdoor lighting, security systems, weather stations

How Silicone Grommets Seal Electrical Connectors

Silicone grommets are inserted into the rear of electrical connector housings, with each grommet featuring precisely sized holes that compress around individual wires. This compression creates a mechanical seal that prevents water, dust, and contaminants from traveling along the wire into the connector cavity. The flexible silicone accommodates wire movement and thermal expansion while maintaining constant sealing pressure.

Why Silicone for Electrical Connector Seals?

Silicone is the preferred material for electrical connector grommets due to its unique combination of properties. Unlike EPDM or neoprene, silicone maintains flexibility across extreme temperature ranges (-65°F to 400°F), ensuring reliable sealing in both arctic cold and underhood heat. Silicone's superior electrical insulation properties prevent current leakage, while its chemical resistance protects against automotive fluids, oils, and fuels. The material's inherent UV and ozone resistance ensures long-term outdoor durability without cracking or hardening.

Design Considerations

• Wire Diameter Tolerance: Grommet holes sized for 10–15% compression on wire insulation diameter
• Multi-Cavity Designs: Available with multiple wire passages for multi-pin connectors
• Retention Features: Molded ribs or flanges prevent grommet pull-out during service
• Material Hardness: Typically 20–60 Shore A for optimal sealing and installation ease
• Color Options: Available in black, gray, red, blue or custom colors for wire identification

Performance Standards & Testing

Our silicone connector grommets are designed and tested to meet automotive and industrial sealing standards including IP67/IP68 ingress protection ratings, SAE J1128 wire sealing requirements, and automotive OEM specifications. Testing includes water immersion, pressure testing, thermal cycling, vibration resistance, and long-term aging validation.

Material Properties

• Material: High-grade silicone rubber (VMQ/FVMQ)
• Hardness: 40–60 Shore A (customizable)
• Temperature Range: -65°F to 400°F continuous (-54°C to 204°C)
• Dielectric Strength: 500+ V/mil
• Tensile Strength: 1,000–1,400 psi
• Elongation: 400–700%
• Compression Set: Excellent (typically <25% at 350°F for 70 hours)

Custom Molding Capabilities

We specialize in custom silicone grommet design and molding for OEM electrical connector applications. Our engineering team works with your connector specifications to design grommets with precise wire hole sizing, cavity configurations, retention features, and dimensional tolerances. We support prototyping, validation testing, and high-volume production with consistent quality and traceability.

Installation Guidelines

1. Select grommet with wire holes sized for 10–15% compression on insulation diameter
2. Thread wires through grommet holes—lubrication may assist installation
3. Insert grommet into connector housing rear cavity until retention features engage
4. Verify each wire is properly sealed with no gaps or misalignment
5. Complete connector assembly and perform seal integrity testing

Why Choose Rubber Mexico for Connector Grommets?

With decades of experience in precision silicone molding for automotive and industrial applications, we deliver connector grommets engineered for reliable environmental sealing. Our in-house tooling, molding, and quality control capabilities ensure dimensional accuracy, material consistency, and performance validation. From prototype to production, we support your connector sealing requirements with technical expertise and manufacturing excellence.

Need custom connector grommets? Contact us with your connector specifications, wire sizes, cavity count, and environmental requirements. Our engineering team will design, prototype, and validate silicone grommets optimized for your application.
